  • Model:
    CW830EB/SW833EB+TCF3F460ECN+HP601T3/T4
  • Product Name:

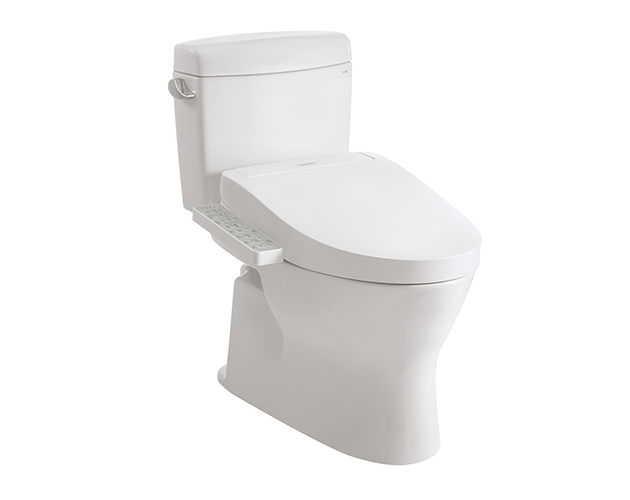

    Washlet?+Toilet
  • Size:
    w:468 x d:700 x h:748(mm)
  • Color:
    White
  • Nominal Water Consumption:
    4.8L
  • Water Efficiency:
    Grade 2
  • Flush Type:
    Washdown
  • Toilet Rough-In:
    305/400mm
  • Drainage mode:
    Underneath Drainage
  • Water Inlet Requirement:
    0.05MPa(Dynamic Pressure) ~ 0.75MPa (Static Pressure)
  • Power Source:
    220V(50Hz)
  • Water Heating Mode:
    Instant
  • Control Type:
    control panel
  • Remarks:
    It must be installed with HP601T3 or HP601T4
  • Product Mix:
    Washlet:S2,C2series。 TC400CVK-1;TC401CVK-1
    Toilet installation kit: D106A;D104N
    Toilet drain HP601T3
    Toilet drain HP601T4
  • Technology:
  • Premist technique applied,prevents dirt attached 。
  • Traditional style, elegant white perfect presentation.
  • 4 .8L flushing, water saving and environmental protection。
  • Brand new slim design with small-sized control panel.The seat cover is integral and seamless.
  • Premist technique applied,prevents dirt attached.
  • Ewater+ technology keeps nozzle always clean.

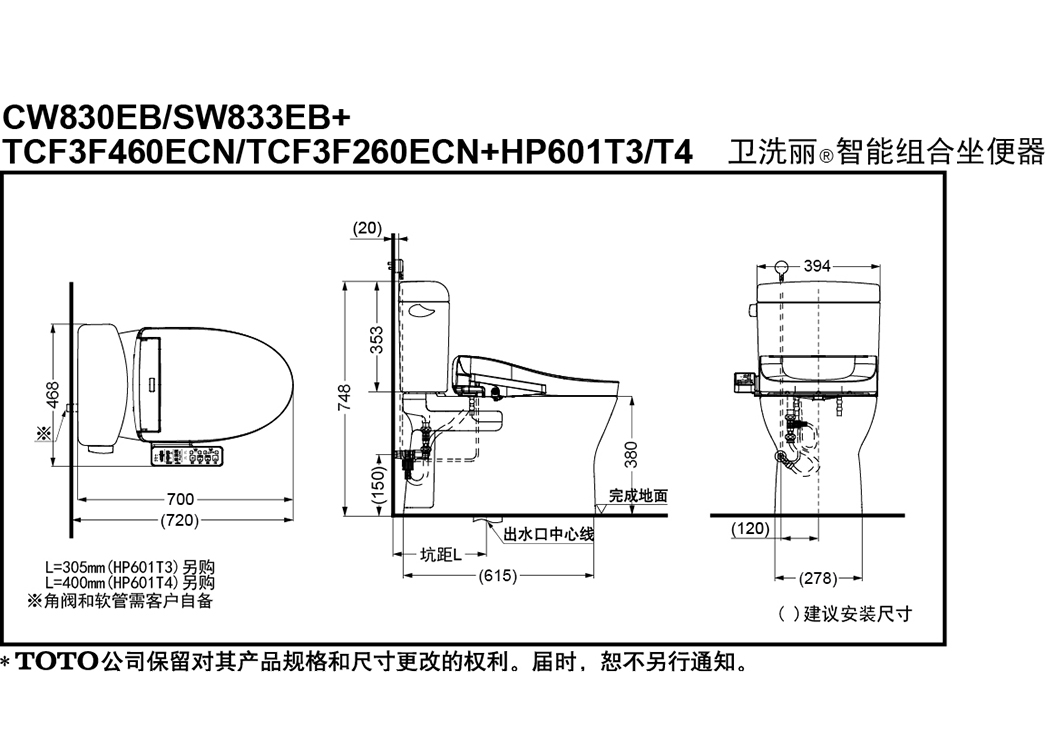

  • CAD Drawing
  • Drawing 1 CAD download
  • Specification
  • CW830EB_SW830EB+TCF3F46... PDF download
  • Installation Instruction
  • 0GZ053 PDF download
